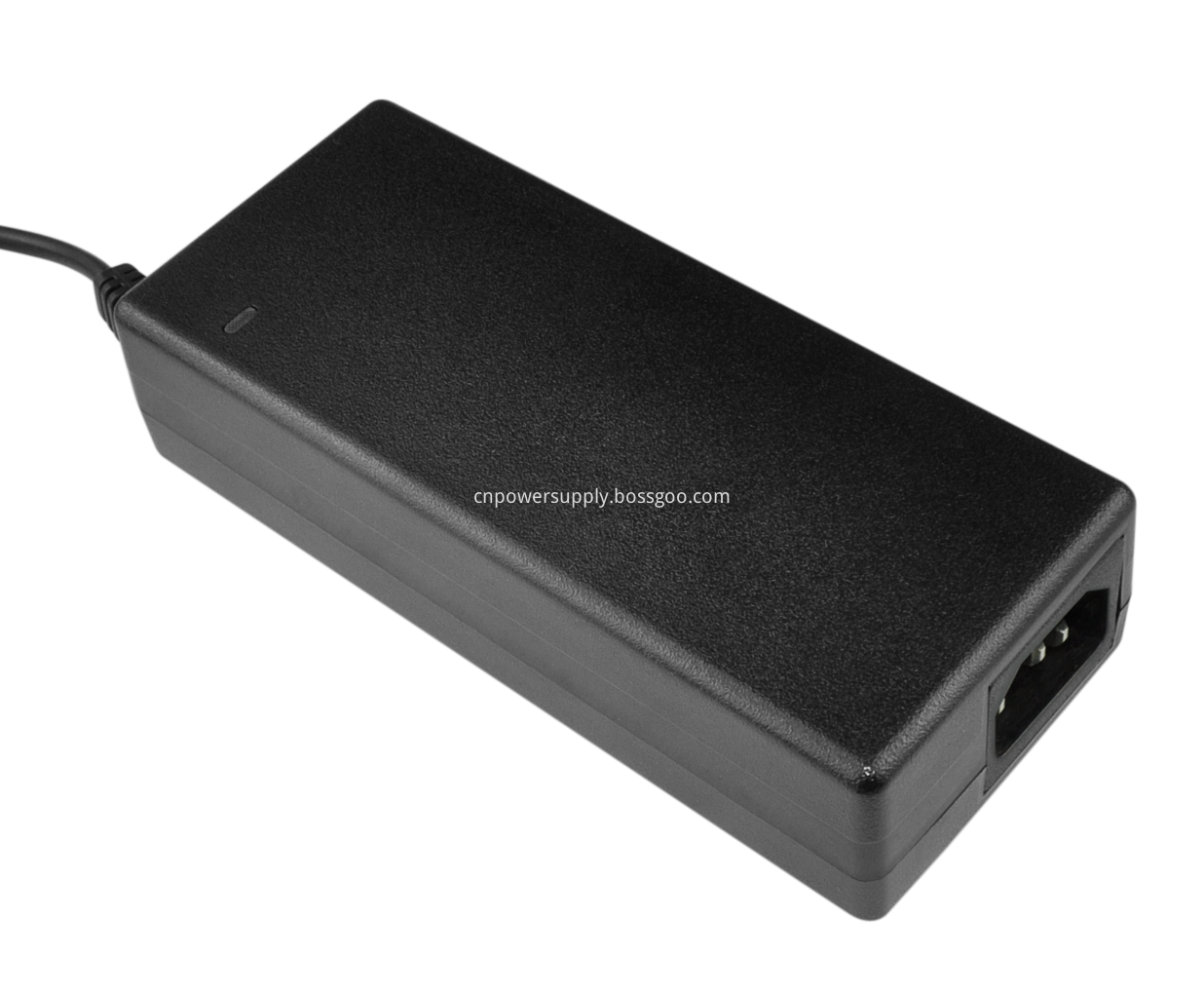

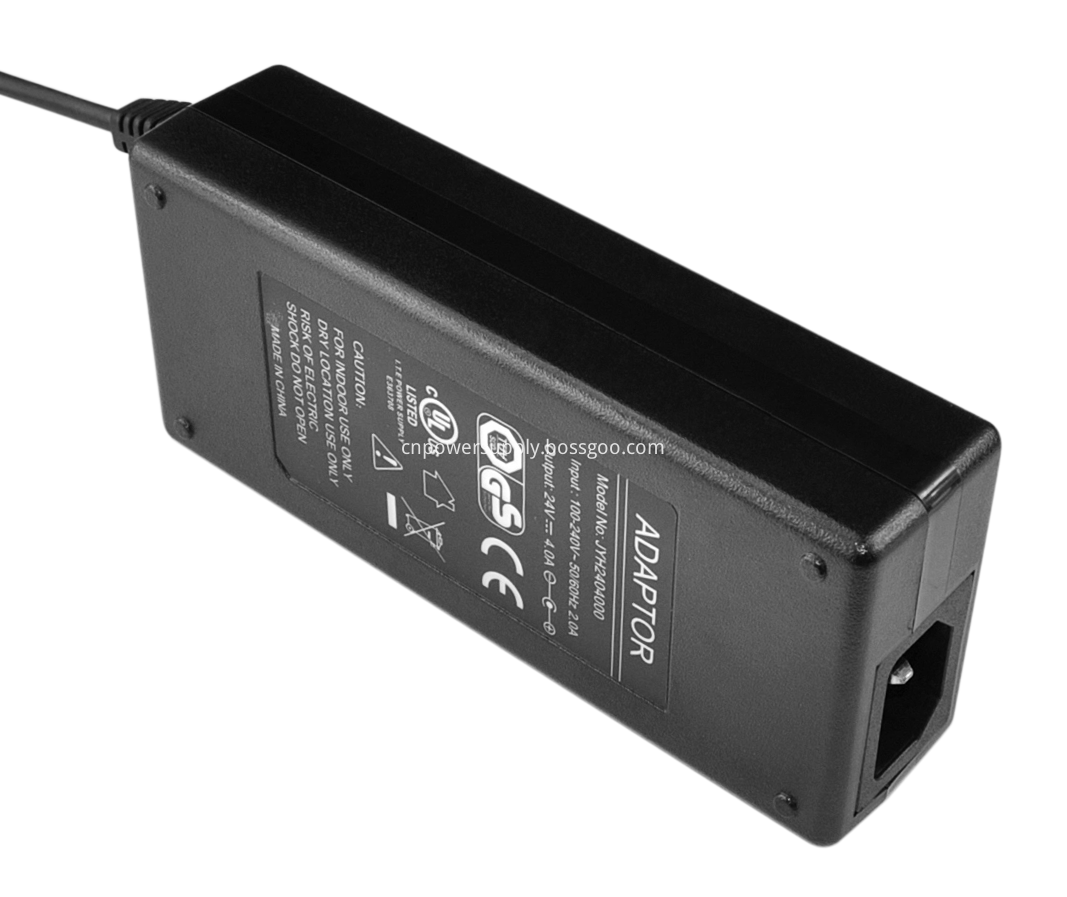

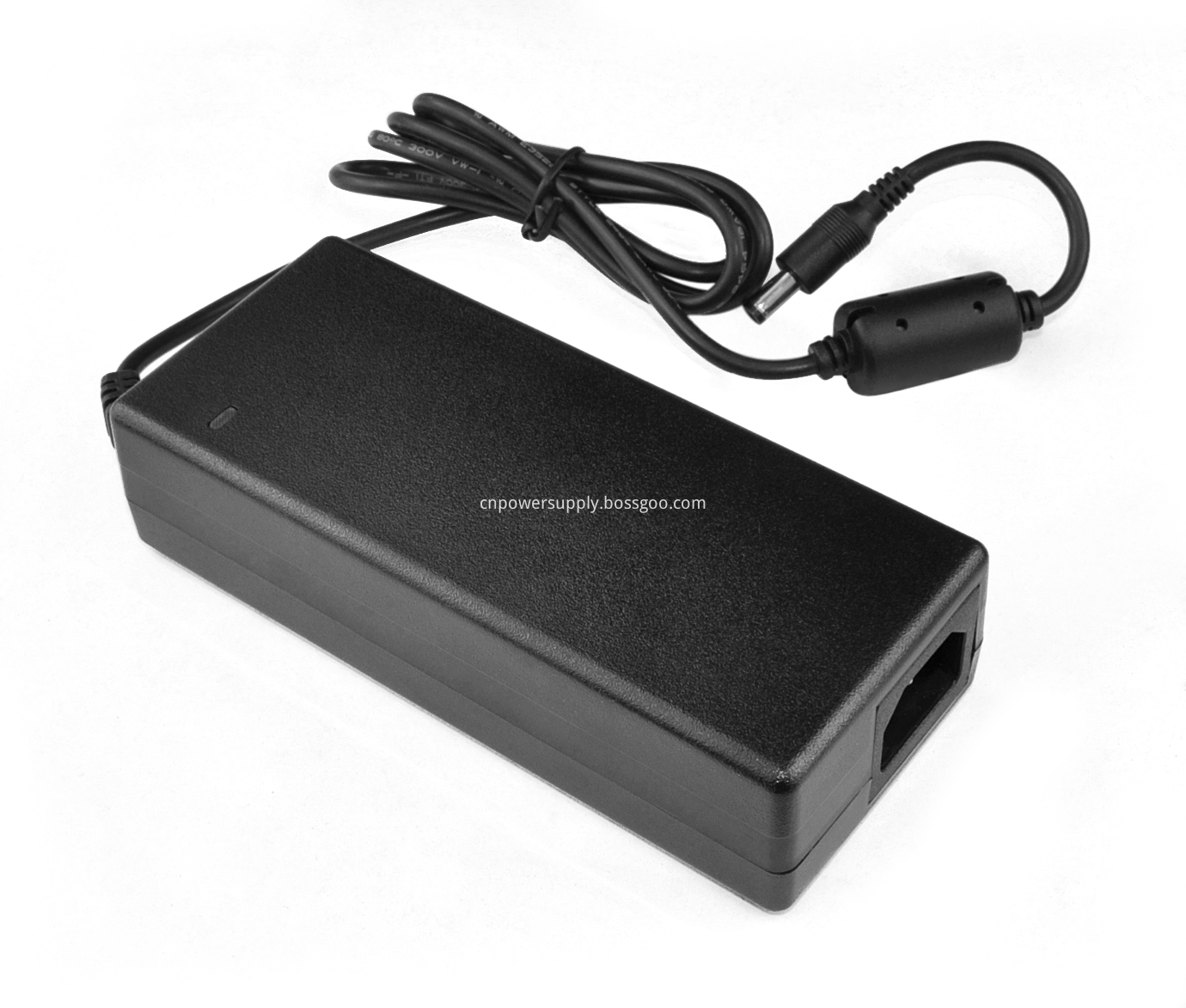

Desk top IEC60335 Power Adapter 29.4V3A 88W

Basic Info

Model No.: JYH294CC300 29.4V3A

Usage: Display, Switching, Laptop

Certification: CCC, UL, ROHS, TUV, ISO9001

Color: Black

Connection: Desktop

Output Type: AC, Single

Type: OEM, Desktop

Place Of Origin: Guangdong, China (Mainland)

Input Voltage: 100V-240V

DC Connector: 5.5*2.1/5.5*2.5mm

DC Cable: 1.2m 1.5m 1.8m 2m 3m

Warranty: 2 Years

Output Voltage: 29.4V

Certificate: IEC60335-1:2010 IEC60335-1:2010/AMD1:2013 IEC6

Product Size: 140mm*60.5mm*34.5mm

Additional Info

Packaging: paper box

Productivity: 20000pcs/day

Brand: JYH or OEM

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 20000pcs/day

Certificate: ISO14000

HS Code: 8504401400

Port: Shenzhen

Product Description

Desk top IEC60335 Power Adapter 29.4V3A 88W

IEC60335 Power Adapter 29.4V3A Description:

29.4V3A desk top power adapter meet many standards,such as IEC60335-1:2010,IEC60335-1:2010/AMD1:2013, IEC60335-2-29:2002,IEC60335-2-29:2002/AMD1:2004,IEC60335-2-29:2002/AMD2:2009.

This 29.4V3A power supply adapter can be used in different products,like scooters,18650 battery pack,Lead-acid battery pack,garden tool,cleaning machines,electric power tool,unmanned aerial vehicle,GPS mapping machines,LED lighting,medical instruments,etc.

29.4V3A AC Power adapter data:

Universal AC input/ full range

Protections: Polarity Protection, over voltage protection.over current protection.overload protection.short circuit protection

Dielectric withstand: 3,000VAC promary-secondary

Leakage current: 0.25mA@2Pin

Efficiency: Energy star level VI&ERP stage 2 certified

EMI conduction & radiation: Compliance to EN55022 EN55024 FCC part 15B Class B

Harmonic current: Compliance to EN61000-3-2

MTBF; 30,000 calculated hours at 25℃, by Telcordia SR-332

Safety approvals: IEC60335-1:2010,IEC60335-1:2010/AMD1:2013, IEC60335-2-29:2002,IEC60335-2-29:2002/AMD1:2004,IEC60335-2-29:2002/AMD2:2009.

29.4V3A Adapter Specification:

Input voltage: 100-240Vac 50/60Hz 0.5A

Output voltage: 29.4V 3A  88w

Output loading precision: ±5%

Operating temperature: 0℃-40℃

Storage temperature: -20℃-80℃

Size: L140*W60.5*H34.5mm

FAQ

2, How we control the quality?

    Aging test for 8 hours, after then we put them into the market.

3, Can we accept samples customized?

    No problem for samples order, and welcome your testing before your big order.

4, What about the production capacity?

    1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.

5, OEM and ODM are available?

    Yes, we accept customized products.

6, Will the delivery time be long for a big order?

    No, we have two special parts in production line, one for samples orders, another for big orders.

7, What is our warranty service?

    For all products we sell have 2 years warranty.
