Product Description
12v 2.5a Switching power Supply Adaptor
12v 2.5a Switching power Supply Description:
12V 2.5A DC Power Supply designed for a variety of DC power products. This power supply can be used with MikroTik, Ubiquiti, OpenMesh, Grandstream and many other 3rd party devices that support 12VDC input with high current requirements.This item is a power supply adapter, suitable for LED lightning, security surveillance system, CCTV security camera, IP camera, etc. More than 80% efficiency.Constant output, stable power and long life.
12V 2.5A AC/DC universal
switching power adapter
AC input 100-240Vac
Output: 12VDC 2.5A
100%
high voltage test, 100% aging test, 100% full inspection
Built-in over current, over voltage, over load and short circuit
protection
High precision, low ripple and low noise
Super-compact designed, light, handy and portable.
Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE
12V 2500mA
AC/DC power adapter specifications:
Input: 100-240Vac 50/60Hz
Output: 12V2.5A
Type: wall mount
Color: Black / white
Size: 96*43.5*30MM
Output loading precision: ±5%
Operating temperature: 0℃ -40℃, 5% -90% RH;
Storage
temperature: -20℃ -85℃, 5% -95% RH;
Efficiency: Energy Star Level VI & ERP Stage 2
Certified
Certificate: CCC, UL, CE, FCC, CB, GS, SAA, C-tick, Rohs,
Protection: over current, over voltage, over load, short circuit
protection
12V 2.5A 2500ma Switching Power Supply Electrical:
Dielectric
Withstand: 3,000VAC Primary-Secondary
Leakage
Current: 0.25mA@2Pin
EMI
Conduction & Radiation: Compliance to EN55022 EN55024 FCC Part 15B Class B
Harmonic
Current: Compliance to EN61000-3-2
MTBF: 30,000
Calculated Hours at 25℃,by Telcordia SR-332
Output
characteristics: constant current / constant voltage mode;
12V2.5A Adaptor AC and DC plug connector:
2.5*0.7*10mm,
3.5*1.35*10mm,
4.0*1.7*10mm,
5.5*2.1*10mm,
5.5*2.5*10mm,

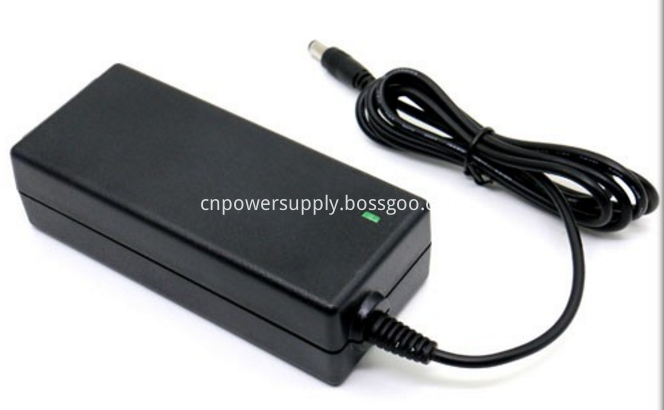

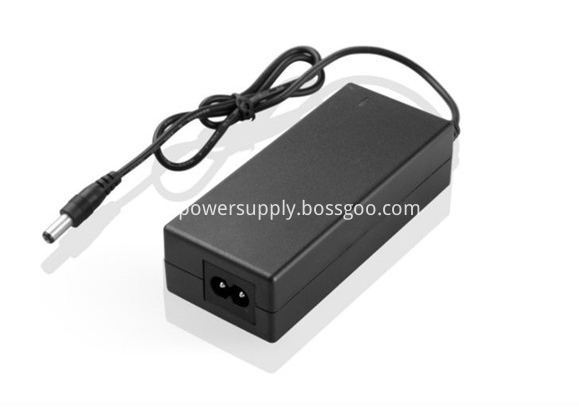

images:
Company infomation :
Shenzhen Juyuanhai Electronic Co.,Ltd. was established in 2009, a professional manufacturer specialized in researching, producing and selling products like Switching power adapter, Car charger etc.So far our products have been exported to Europe, North America, Australia, Africa, Middle East and Southeast Asia. All our products enjoy very high reputation among our customers. Warmly welcome domestic and foreign customers to visit our factory and achieve win-win situation.
FAQ
1, What kind of company we are?
We are professional power supply manufacturer with high reputation in this field.
2, How we control the quality?
Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
4, What is our warranty service?
For all products we sell have 2 years warranty.
