Product Description
LED Strip Power Supply 24V0.75A AC/DC Adapter
24V 0.75A power adapter description :
24v 0.75a fixed voltage (24V) switch mode AC/DC power with UK Plug. Supplied with 4 tips: 3.5 x 1.35 x 10 mm,5.5 x 2.5 x 12 mm, 2.5 mm & 3.5 Jack Plug the product is ideal for computer equipment, children's toys,Led strip light,keyboards and many other 24V devices up to 18W.A variety of 24VDC 750ma power supplies capable of transforming a wide range of AC power to 24VDC power for usage with 24VDC LED products only.
LED Strip Power Supply 24V0.75A switching power adapter
AC input
100-240Vac
Output: 24VDC 0.75A
100%
high voltage test, 100% aging test, 100% full inspection
Built-in over current, over voltage, over load and short circuit
protection
High precision, low ripple and low noise
Super-compact designed, light, handy and portable.
Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE
LED Strip Power Supply 24V0.75A Electrical:
Dielectric
Withstand: 3,000VAC Primary-Secondary
Leakage
Current: 0.25mA@2Pin
EMI
Conduction & Radiation: Compliance to EN55022 EN55024 FCC Part 15B Class B
Harmonic
Current: Compliance to EN61000-3-2
MTBF: 30,000
Calculated Hours at 25℃,by Telcordia SR-332
Output
characteristics: constant current / constant voltage mode;
24V0.75A AC/DC adapter DC connector:
2.5*0.7*10mm,
3.5*1.35*10mm,
4.0*1.7*10mm,
5.5*2.1*10mm,
5.5*2.5*10mm,
Micro
USB

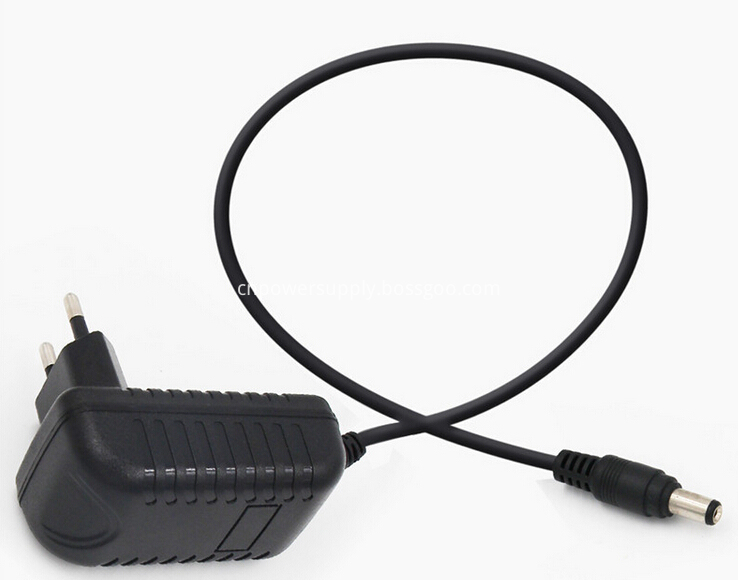

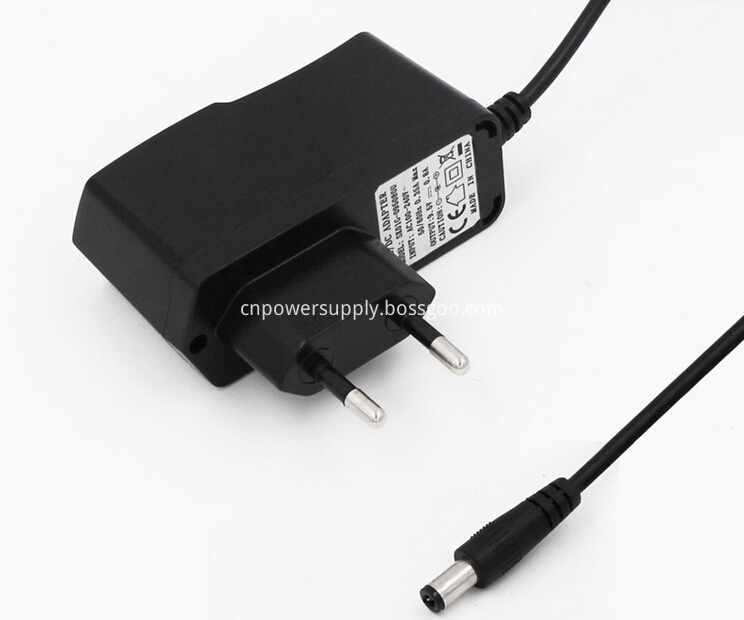

Pictures :
Company infomation :
Shenzhen
Juyuanhai Electronic Co.,Ltd. was established in 2009, a professional manufacturer
specialized in researching, producing and selling products like Switching
power adapter, Car charger etc.So far our products have been
exported to Europe, North America, Australia, Africa, Middle East and Southeast
Asia. All our products enjoy very high reputation among our customers. Warmly welcome domestic and
foreign customers to visit our factory and achieve win-win situation.
Packing & Shipping :
FAQ
1, What kind of company we are?
We are professional power supply manufacturer with high reputation in this field.
2, How we control the quality?
Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
4, What about the production capacity?
1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.
5, OEM and ODM are available?
Yes, we accept customized products.
6, Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders.
7, What is our warranty service?
For all products we sell have 2 years warranty.
