Product Description
20V 0.85A Wall Charger Power Supplies
20V 0.85A Wall Charger Power Supply Description :
Made by Juyuanhai Electronic's high quality power supplies, output is 20V0.85A. Pass UL/CE/FCC/ROHS standard,and also pass 15KV ESD test. Our professional 20V0.85A wall charger power supply keeps your devices working efficiently under any application. Supply efficient power to your devices with our highly dependable power adapters.
20V 0.85A AC/DC Universal Switching Power Adapter
AC input 100-240Vac
Output: 20V 0.85A
100% high voltage test, 100% aging
test, 100% full inspection
Built-in over current, over
voltage, over load and short circuit protection
High precision, low ripple and low noise
Super-compact
designed, light, handy and portable.
Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE/Korea
20V 0.85A Power Adapter Specifications:
Input:
100-240Vac 50/60Hz
Output: 20V0.85A
Type: wall
mount
Color: Black
/ white
Size:
71*42*31MM
Output
loading precision: ±5%
Operating
temperature: 0℃ -40℃, 5% -90% RH;
Storage temperature: -20℃ -85℃, 5% -95% RH;
Efficiency:
Energy Star Level VI & ERP Stage 2 Certified
Certificate: CCC, UL, CE, FCC, CB,
GS, SAA, C-tick, Rohs,
Protection: over current,
over voltage, over load, short circuit protection
20V 0.85A power adapter Electrical:
Dielectric Withstand: 3,000VAC Primary-Secondary
Leakage Current: 0.25mA@2Pin
EMI Conduction & Radiation: Compliance to
EN55022 EN55024 FCC Part 15B Class B
Harmonic Current: Compliance to EN61000-3-2
MTBF: 30,000 Calculated Hours at 25℃,by Telcordia SR-332
Output characteristics: constant current / constant
voltage mode;
20V 0.85A AC/DC Power Adapter DC Connector:
2.5*0.7*10mm,
3.5*1.35*10mm,
4.0*1.7*10mm,
5.5*2.1*10mm,
5.5*2.5*10mm,
Micro USB

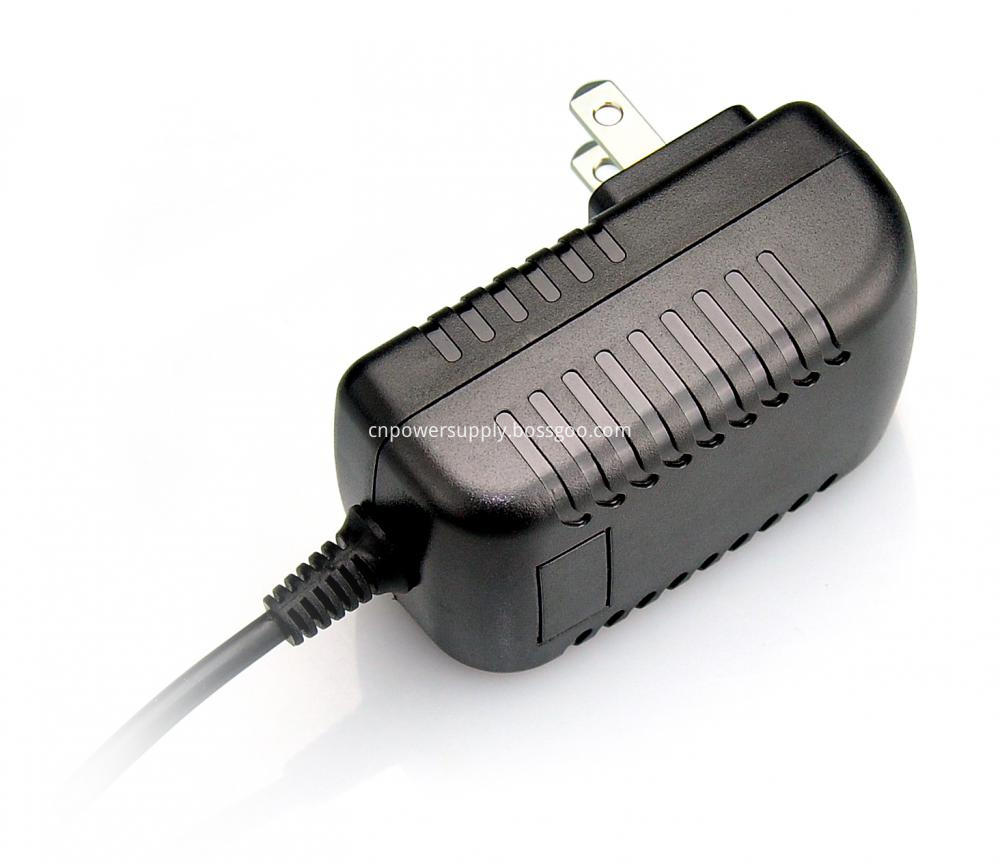

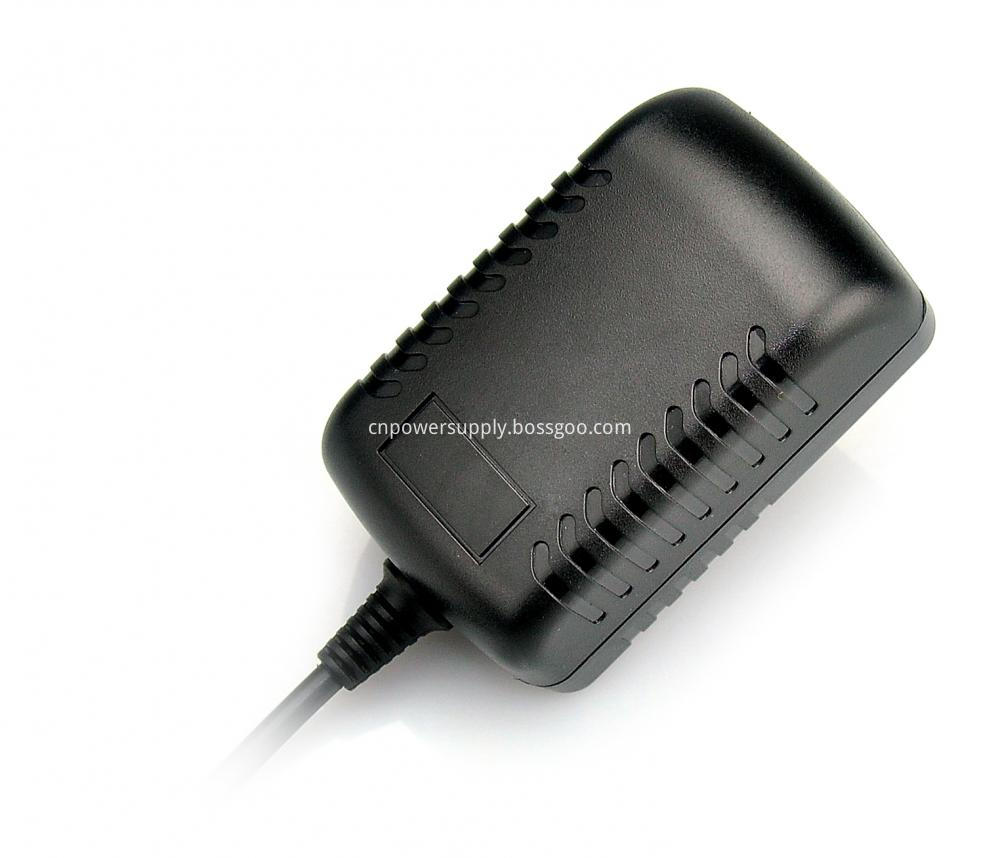

Pictures :
Company infomation :
Shenzhen
Juyuanhai Electronic Co.,Ltd. was established in 2009, a professional manufacturer
specialized in researching, producing and selling products like Switching
power adapter, Car charger etc.So far our products have been
exported to Europe, North America, Australia, Africa, Middle East and Southeast
Asia. All our products enjoy very high reputation among our customers. Warmly welcome domestic and
foreign customers to visit our factory and achieve win-win situation.
Certificates:
packing & shipping :
FAQ
1, What kind of company we are?
We are professional power supply manufacturer with high reputation in this field.
2, How we control the quality?
Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
4, What about the production capacity?
1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.
5, OEM and ODM are available?
Yes, we accept customized products.
6, Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders.
7, What is our warranty service?
For all products we sell have 2 years warranty.
